1.0mm Pitch SMT ZIF Vertical Type High temperature restiance FPC/FFC connectors
FPC connector is of various types, which can achieve thin, miniaturization, high frequency signal transmission, with high density, excellent flexibility, flexible folding and telescopic characteristics. FPC connector is a kind of flexible material that can be folded and bent into the connector, used for PCB connection circuit board and FPC flexible printed circuit board, so as to achieve mechanical and electrical connection. FPC connectors are widely used in digital communication products such as LCD/LED LCD screens, tablet computers, digital cameras, mobile phones and notebook computers. In FPC connector testing, the Blade PIN shrapnel microne module has a wide range of values in the small pitch field, ranging from 0.15mm to 0.4mm, and can easily cope with stable performance and superior performance in complex test environments.
| Product name | ZIF FFC FPC Connector |
| Contact | Phosphor Bronze |
| Solder tab | Stainless Steel |
| Plating | Tin or Gold over Nickle |
| Housing | High-temp Nylon (UL94V-0) |
| Pitch | 0.5,0.8,1.0 all available |
| Poles | 4~50 |
| Voltage | 60V |
| Current Rating | 0.5~1AMP |
| Contact Resistance | 30mΩ |
| Working temperature | -20~105℃ |
| Certifications | ROHS, CE |
| ODM & OEM | Can provide services |
| Suitable for Scenes | Computer Memory, Power transfer, Commnications Power System, PC Application |
Flat FPC connector product features
① : manufacturing miniaturization, compact, high-density integration
② : Save space
③. Simplify wiring procedures, simple connection
④. Save labor costs
⑤. Excellent flexibility, flexible application, foldable.
Two, FPC connector spacing:
The spacing is 0.3, 0.5, 0.8, 1.0, 1.25, 1.27, 2.0, 2.54mm, 4 to 50 screen number of multiple specifications series, PH strip connector, XH strip connector, 3.96 strip connector, SAN strip connector, SCN strip connector, SM strip connector and so on.
Three, the conventional connector comparison advantages;
FPC flexible circuit board with good bending, folding and scalability, customized single and double sides, 4 layers, layered board, hollow board and so on.
Product Tags:
|
|

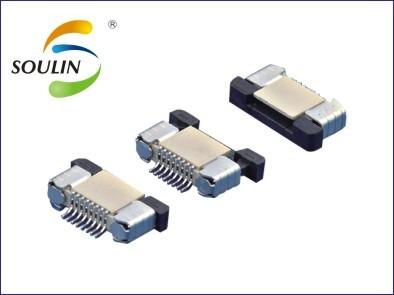

SMT ZIF FPC Cable Connector 1.0mm Pitch Images
|
